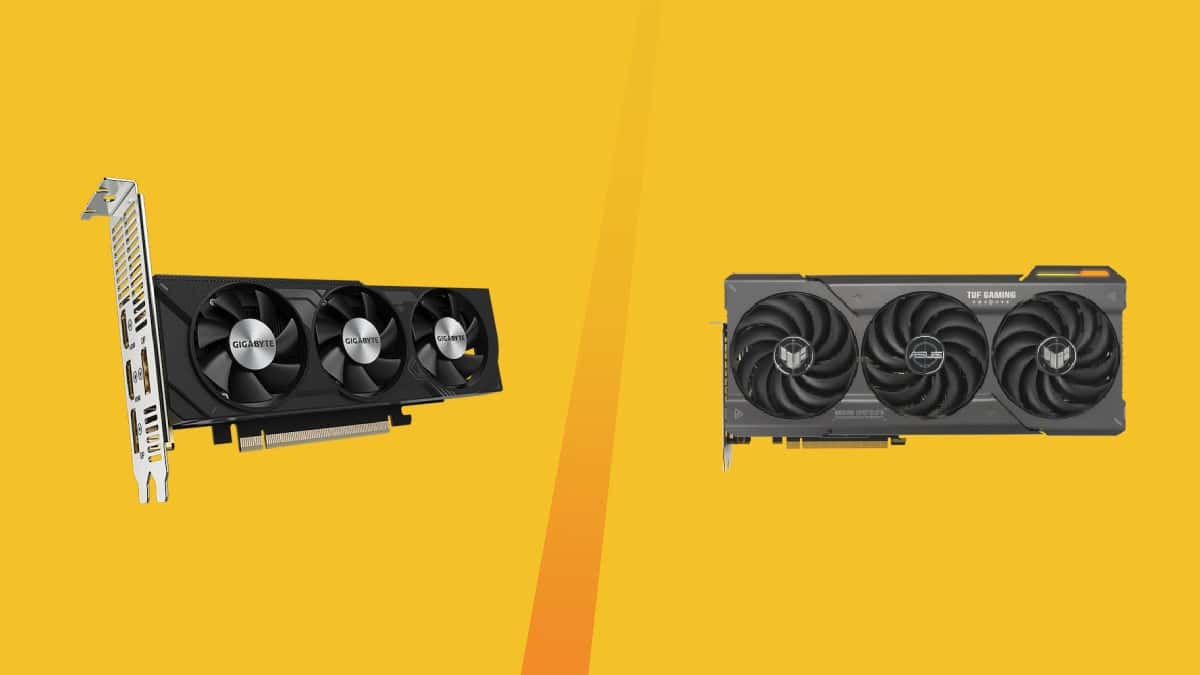

We’re bringing you our RX 7800 XT vs RTX 4060 comparison to help you pick your next graphics card.

With the release of the RX 7800 XT, it’s time to take a closer look at AMD’s 1440p king. Expect FSR and Hyper-RX features amongst other improvements on the RX 7800 XT. Make sure to know where to buy the RX 7800 XT on the release date too.

The RTX 4060 was released in June 2023. It is Nvidia’s budget offering meant for 1080p gaming. The RTX 4060 is currently the lowest-end RTX 4000-series card you can get (until the RTX 4050 is announced). It is also the most affordable card that supports DLSS 3.0 at the moment.

Choosing between these two cards depends largely on whether you’d rather play in 1080 or 1440p and how much you want to spend. The RTX 4060 is easily the cheaper card, though its 8GB VRAM is an easy cause for concern.

RX 7800 XT vs 4060 comparison – architecture

It’s a toss up between Ada Lovelace and RDNA 3.

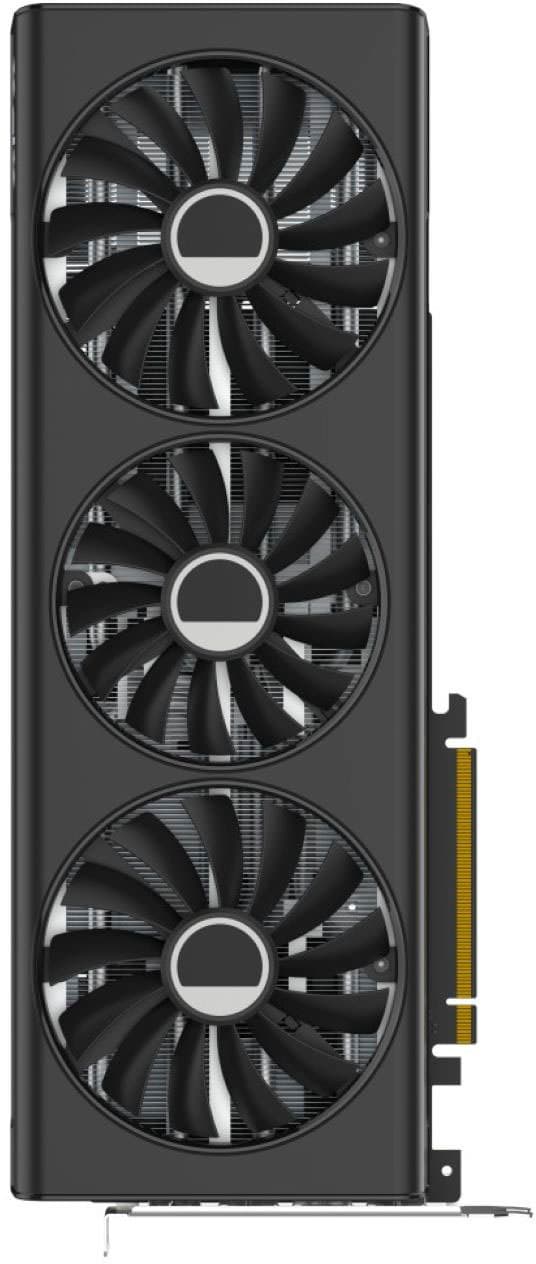

The RX 7800 XT is based on the RDNA 3 architecture. RDNA 3 is known for its world-first GPU chiplet design that has improved the power efficiency of the RX 7000-series cards by up to 50% if you’re comparing it to the RX 6800 XT. It is also the first time AMD has used TSMC’s 5nm process node instead of 7nm. Apart from changes to the die, RDNA 3.0 also brings 2nd gen Raytracing, 2nd gen Infinity Cache, and AI Acceleration for the first time to give you a better gaming experience with improved performance and visuals. It’s no doubt a strong contender for the best GPU for raytracing.

The RTX 4060 is built on Ada Lovelace, which is Nvidia’s latest architecture. Just like RDNA 3.0, Ada Lovelace is also the first architecture to use TSMC’s 5nm. Previously, Nvidia was using Samsung’s 8nm process node. As a result, the RTX 4000-series cards are also more power-efficient than their predecessors. Ada Lovelace also brings DLSS 3 to the table, which uses the new 4th gen Tensor cores to upscale the resolution and predict the next frames.

Architecture-wise, Ada Lovelace takes the win with its DLSS. The upscaled resolution and performance jump using DLSS is on another level compared to RDNA 3.

RX 7800 XT vs 4060 comparison – specs comparison

Specs	RX 7800 XT	RTX 4060
GPU Architecture	RDNA 3.0	Ada Lovelace
Cores	3840	3072
Base clock	1800 MHz	1830 MHz
Boost clock	2430 MHz	2460 MHz
Die Size	346 mm²	159 mm²
Memory	16 GB GDDR6	8 GB GDDR6
Bandwidth	624 GB/s	272 GB/s
TGP	263 W	115 W

Going over the specifications, the RX 7800 XT comes out on top in pretty much every way. First up, the card comes with 768 more cores, and yes, its clock speeds are slightly lower than the RTX 4060, but the VRAM is a completely different story. The RX 7800 XT offers twice the memory of the RTX 4060. That’s a significant advantage. Plus, this 16 GB GDDR6 VRAM runs at a 624 GB/s bandwidth, which is a +352 GB/s increase.

The only way the RTX 4060 comes out on top is with its power consumption, which is just 115 W. In comparison, the RX 7800 XT is rated for 263 W, that’s 148 W more. Make sure you have plenty of airflow in your chassis and a good power supply if you go for the RX 7800 XT.

Overall, the RX 7800 XT wins the specifications battle. On paper, the card leaves the RTX 4060 in the dust. Sure, its power consumption is on the higher side, but it makes sense when you look at the rest of the numbers. Make sure you check out the best PSU for RX 7800 XT.

RX 7800 XT vs 4060 comparison – performance

If you’re choosing between the RX 7800 XT and the RTX 4060, then you will want to know which one of the two will give you higher FPS in your favourite games. The RX 7800 XT gives competitive gaming performance at 1440p. It can also offer rock-solid 4K gaming because of its high VRAM.

On the other hand, the RTX 4060 is best for 1080p gaming. You can also enjoy 1440p with it, but that’ll include turning on DLSS. Of course, 4K is basically off the table with this card. Since the RTX 4060 has been out for some time, we know the card will give you around 100 FPS on average at 1080p. Similarly, 1440p with no DLSS means you cannot play FPS games, just story mode.

Overall, if you want a 1440p card, then RX 7800 XT is the best option. The card has enough raw performance that it will never disappoint you in any AAA title. Meanwhile, the RTX 4060 remains a solid option for 1080p gaming, though you may be let down a little by the VRAM as games grow more demanding.

RX 7800 XT vs 4060 comparison – price comparison

The RX 7800 XT comes with a $500 MSRP. As such, its AIB variants will also cost you pretty much the same, with high-end models going above $500. While the pricing is steep, if you factor in the excellent performance, the card actually stands to offer good value for money.

The RTX 4060 is a different story. The card has a $300 MSRP, with variants ranging from $290 to $330. That’s a big difference in pricing that makes the RTX 4060 very tempting.

If you only consider the pricing, the RTX 4060 is a clear winner. With a $200 lower price, you can save some big bucks by going with this card.

RX 7800 XT vs 4060 comparison – final word

All in all, the final decision comes out to be about what you expect from the card. If budget is not your primary concern and you want high-end 1440p gaming as well as a great 4K experience, then the RX 7800 XT is an excellent choice. However, if you are on a tight budget and want just 1080p to 1440p gaming, then RTX 4060 is a great deal.
