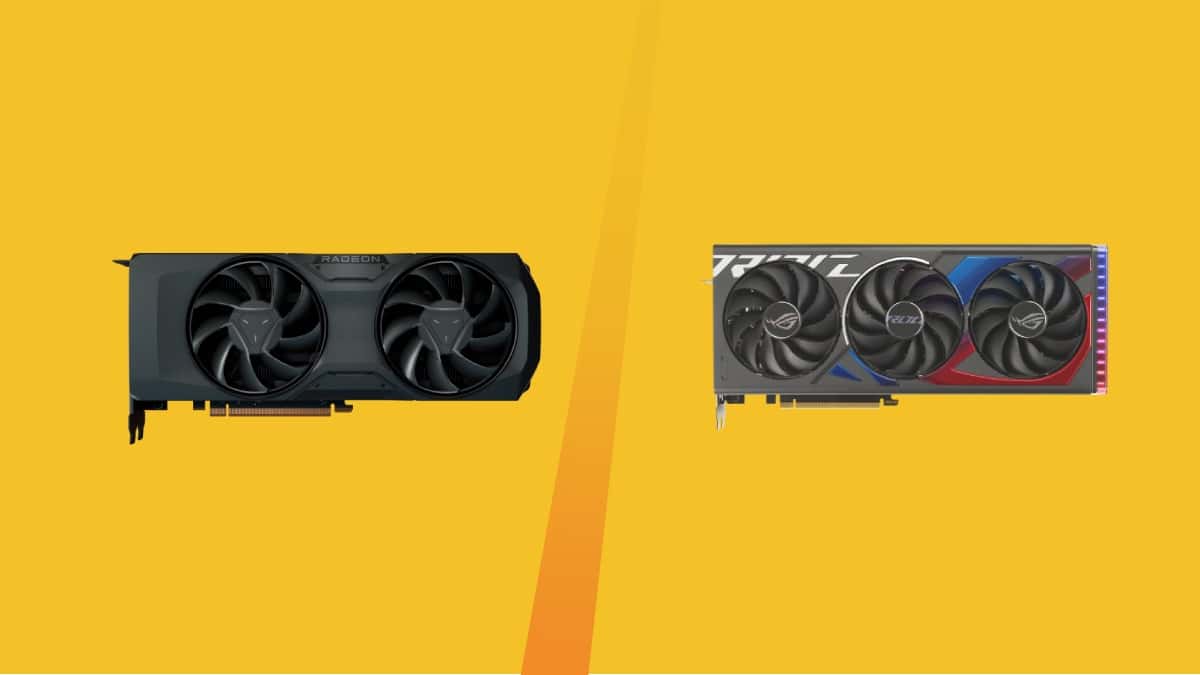

We’re bringing you our RX 7700 XT vs RTX 4060 comparison to help you pick your next graphics card.
AMD has released the RX 7700 XT with the RX 7800 XT as the new 1440p champions, with a $50 difference between them. The RX 7700 XT offers an excellent price-to-performance ratio, and if you plan to get one, then make sure you know where to buy it.
The RTX 4060 was released back in June 2023. It falls at the bottom of the RTX 40 series hierarchy and is the cheapest way to enter the Ada Lovelace architecture. The idea behind the RTX 4060 is to offer 1080p competitive gaming while staying pocket-friendly. Make sure you get the best RTX 4060 graphics card for the ideal experience.
Is the latest RX 7700 XT worth it, or should you save big bucks with the RTX 4060?
RX 7700 XT vs RTX 4060 – architecture
By comparing the different architectures of the cards, we can figure out which one supports more performance, better efficiency, and extra features.
The RX 7700 XT is built using the latest RDNA 3 architecture. RDNA 3 is a massive jump from RDNA 2 because it’s the world’s first GPU architecture to feature a chiplet design. Furthermore, it is also the first time AMD has ditched TSMC’s 7nm process node for 5nm. This way, the RX 70 series cards are up to 50% more power efficient. Apart from that, RDNA 3 also includes the latest 2nd gen Raytracing, 2nd gen Infinity Cache, and, for the first time, AI Acceleration in Radeon graphics cards for better performance. For a more detailed breakdown, take a look at the comparison of the RDNA 2 and the RDNA 3.
The RTX 4060 is based on the Ada Lovelace architecture. It is Nvidia’s latest design that also uses TSMC’s 5nm process node. Previously, Nvidia was using Samsung’s 8nm with its Ampere node. As a result, the Ada Lovelace graphics cards are also significantly more power-efficient than their counterparts. Nvidia also brought 4th gen Tensor Cores and 3rd gen RT Cores with Ada Lovelace, which means the RTX 40 series cards are excellent in DLSS and Ray Tracing. If you’re considering the RTX 4060 then make sure you’ve got one of the best RTX 4060 PSU to go with it.
If we only compare RDNA 3 to Ada Lovelace, then Ada Lovelace is better because of its use of dedicated Tensor cores for upscaled resolution and frame generation. However, the RX 7700 XT makes the most out of its architecture better than the RTX 4060, and that’s why this win goes to Team AMD.
FSR 3.0 vs DLSS 3.0
Along with the RX 7700 XT, AMD is also releasing FSR 3.0, which combines FSR (upscaled resolution) with Fluid Motion Frames (frame generation). This brings AMD graphics cards to the level of DLSS 3. Now, both cards can play games at an upscaled resolution while maintaining high framerates with frame generation.
Plus, the lack of dedicated hardware in FSR 3 means it will work with all RX 60 and RX 70 series, along with RX 5700 and above cards. On top of that, FSR 3 will also work with Nvidia’s RTX 30 and 40 series cards.
Nvidia recently announced DLSS 3.5, which is meant to work with all RTX graphics cards. DLSS 3.5 brings massive Ray Tracing improvements to the table. Especially when the DLSS 3.0 was already increasing framerates and performance massively. It does not mean that RTX 20 and 30 series cards will automatically support frame generation, but it means that their Ray Tracing performance will be enhanced using AI-powered Ray Reconstruction.
RX 7700 XT vs RTX 4060 – specs comparison
| Specs | RX 7700 XT | RTX 4060 |
| GPU Architecture | RDNA 3.0 | Ada Lovelace |
| Cores | 3456 | 3072 |
| Base clock | 1900 MHz | 1830 MHz |
| Boost clock | 2544 MHz | 2460 MHz |
| Die Size | 346 mm² | 159 mm² |
| Memory | 12 GB GDDR6 | 8 GB GDDR6 |
| Bandwidth | 432 GB/s | 272 GB/s |
| TGP | 245 W | 115 W |
After going over the specifications, it is clear that the RX 7700 XT wipes the floor with the RTX 4060. It stands to offer better performance in every way. For instance, the card has more cores, 4 GB extra VRAM, and +160 GB/s bandwidth.
The only place the RTX 4060 wins is power consumption, with the RX 7700 XT rated to consume 130 W, so make sure you get a good power supply and casing. Overall, the RX 7700 XT is a winner in specifications, and the only reason to go for the RTX 4060 is for its power consumption.
RX 7700 XT vs RTX 4060 – performance
When it comes to performance, the RX 7700 XT performs above the RX 6800 and below the RTX 4070, meaning that the card will handle 1440p and 4K gaming without any issues.
Since the RTX 4060 has been out for quite some time, we know in a lot of detail how it can perform. In short, the card can be considered the best GPU for 1080p gaming. While it is possible to play 1440p with RTX 4060, the experience can be shaky (with DLSS off). On average, you should get around 100 or more FPS at 1080p, which is very good.
As far as performance is concerned, the RX 7700 XT wins it. The card offers significantly better framerates across all resolutions.
RX 7700 XT vs RTX 4060 – price comparison
Coming to the pricing, the RX 7700 XT is listed for $450, which means its AIB variants will be around $470 to $480. This isn’t the best price tag, but it is definitely not the worst because the card offers excellent performance.
Where to buy the RX 7700 XT
- Gigabyte Radeon RX 7700 XT Gaming OC 12GB GDDR6 Graphics Card
- XFX Speedster QICK319 AMD Radeon RX 7700 XT Black 12GB GDDR6 Graphics Card
- ASRock Challenger Radeon RX 7700 XT
- PowerColor RED DEVIL Radeon RX 7700 XT
- SAPPHIRE NITRO+ Radeon RX 7700 XT
The RTX 4060, on the other hand, has a $300 MSRP, and it can be found for as low as $290 or as high as $330. It’s definitely a strong contender for the best GPUs under $500.
MSI Gaming GeForce RTX 4060
Base Clock
1830MHz
Boost Clock
2460MHz
VRAM
8GB
Recommended PSU
300W
Since the RTX 4060 is $150 cheaper than the RX 7700 XT, it is a better option if you’re on a tight budget.
RX 7700 XT vs RTX 4060 – final word
In conclusion, the RX 7700 XT is superior to RTX 4060 in all ways. It has way more performance, and it will keep up with the upcoming games better than the RTX 4060. However, if you don’t have a $450 budget, and you want something for 1080p gaming, then the RTX 4060 is a good choice.
